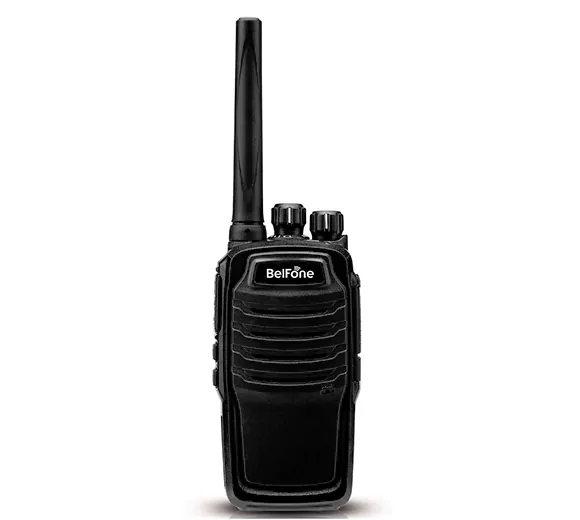

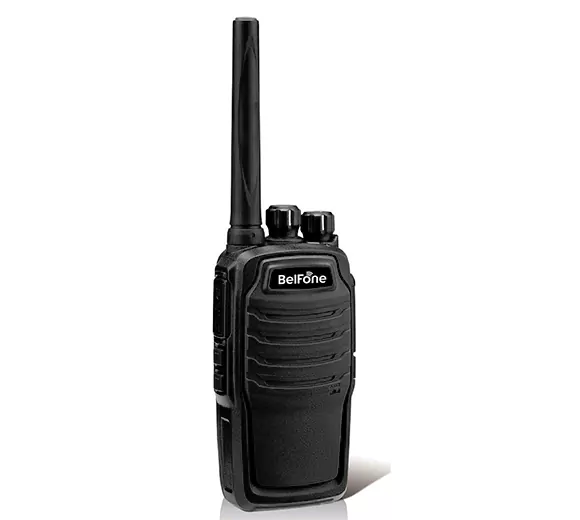

Professional FM Transceiver

BF-3110

BF-3110 professional FM radio, using new ABS material, good seismic resistant protective performance, innovative design cascading horn surface cover, have excellent antinoise, anti-jamming performance, sound clear and melodious. 2200mAh large-capacity li-ion battery makes the battery life longer. Other functions are voice calls, channel scanning, beat frequency offset and so on.
Brochure
Inquiry
Features & Benefits
Specification
Accessories


VOX

Channel scan

PC programming

Low battery alarm

Time out timer (TOT)

Wide/narrow band switch

New ABS material

Beat frequency offset

Battery save automatically

Busy channel lockout (BCL)

Good seismic resistant protective performance

Excellent antinoise, anti-jamming performance



General
Frequency range
UHF:400-470MHz
Channels
16
Channel spacing
25KHz/12.5KHz
Working temperature
-20℃~+60℃
Antenna impedance
50Ω
Operating voltage
DC 3.7V (±20%)
Battery capacity
2200mAh
Frequency stability
≤±2.5 ppm
Dimension
57(L)*33(W)*120(H)mm
Weight
195g(including the battery pack)
Transmitter
Output power
≤5w
Modulation
11KφF3E/16KφF3E
Rated audio distortion
<5%
Adjacent power
60dB
Modulation limitation
≤±2.5KHz /±5.0KHz
Receiver
Sensitivity
≤-123dB(12dB SINAD)
Adjacent selectivity
≥60dB(width)/ 55dB (narrow)
Intermodulation rejection ratio
≥60dB(width)/ 55dB (narrow)
Spurious suppression
≥60dB(width)/ 55dB (narrow)
Rated audio output power
0.5W
Rated audio distortion
≤5%
