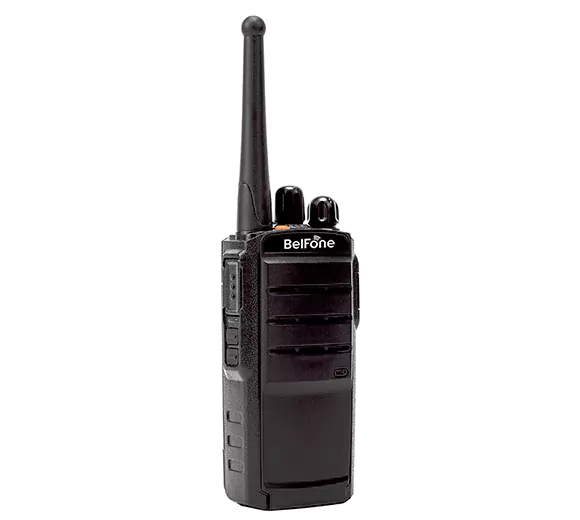

DMR Portable Radio

BF-TD518

As an entry level DMR handheld two-way radio, BF-TD518 is a perfect analog replacement for small businesses. BF-TD518 delivers a basic set of digital features such as superb audio, long battery life, higher spectrum efficiency, enabling the user to experience digital communications and a smooth transition from analog to digital. This is a most cost-effective two-way radio for restaurants, hotels, shops other indoor users.
Brochure
Inquiry
Features & Benefits
Specification
Accessories


Digital/Analog Dual Modes

BF-TD518 gives you a smooth transition from the analog world to the digital.


A Longer Battery Life

BF-TD518 can function for longer than any conventional analog radios, meeting the battery needs of a long-day operation.


Small Size and Light Weight

BF-TD518 is small and light enough to be held easily and comfortably in a single hand. It is also very easy to operate.


Excellent Audio Quality

The FEC technology and AMBE3000 vocoder deliver a clear and crisp audio.


Private Call, Group Call And All Call (programmable)

The versatile calling functions bring more efficiency to your teamwork.


Scan/Monitor(programmable)

At a convenient push of a button you can monitor all the conversations on your channel or you can scan conversations on different channels.


Compatible with Motorola Audio Accessories

BF-TD518 is compatible with Motorola audio accessories. So, if you already have a Motorola analog earpiece or microphone,you can pair them with BelFone BF-TD518 and go hand-free.


TDMA 2-Slot

In repeater mode this radio supports two voice calls simultaneously due to DMR two timeslots, which means two communication paths at 1 frequency with no extra costs or frequency license.


Digital/Analog Mixed Mode

Receive both analog and digital signals on a single channel and can automatically switch into the relevant mode for efficient communications.




General
Frequency Range
UHF:350-390MHz/400-480MHz/450-520MHz
Channel Capacity
32
Zones
2
Channel Spacing
12.5KHz
Antenna Impedance
50Q
Operating Voltage
DC7.4V (±20%)
Battery Average Working Time(5/5/90)
Digital:18 hours; Analog: 14 hours
Battery Capacity
Real 1800mAh
Frequency Stability
±1.5 ppm
Dimensions
61(L)x35(W)x117(H)mm
Weight
239g (including battery pack)
Transmitter
Power Output
H: 5W / M: 3W / L:1W
4FSK Modulation
12.5KHz data only: 7K60FXD 12.5KHz data and voice: 7K60FXE
FM Modulation
12.5KHz;8K50FXD
Modulation Limitation
+/-2.5KHz@12.5KHz; +/- 5KHz @ 25KHz
Spurious Emission
-36 dBm <1 GHz -30 dBm 21 GHz
Rated Audio Distortion
<3%
Adjacent Channel Power
<-60dB
Frequency Response
+1/-3 dB
Vocoder
SELP
Receiver
Digital Sensitivity
5%BER: 0.25 μV
Analog Sensitivity
0.25 μV (12 dB SINAD)
Adjacent Selectivity
60dB
Intermodulation
65dB
Spurious Suppression
70dB
Conduction Radiation
-36 dBm
Rated Audio Power
500mW
Rated Audio Distortion
3% (typical)
Environmental Specifications
Shock & Vibration
MIL-STD-810C/D/E/F
Working Temperature
-20℃~+60℃
Storage Temperature
-30℃~+85℃
