Enhanced Conventional Mobile Radio

BF-TM8250EG

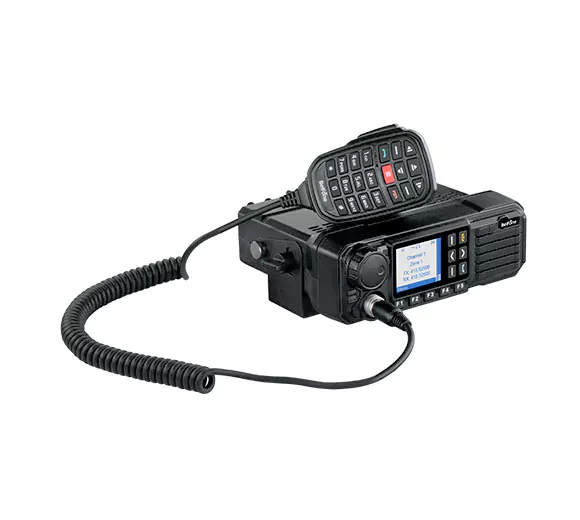

BF-TM8250EG is a feature-rich DMR mobile radio with a large HD color display which is easy to read even under strong light environments. It comes with a comprehensive feature kit and five programmable buttons that allow the user to access any features he chooses, delivery great convenience and flexibility. The integrated functions remote kill/stun/revive bring unprecedented efficiency to management and teamwork.
Brochure
Inquiry
Features & Benefits
Specification
Accessories
Full DMR Conventional Features
Full DMR Conventional Features
Suitable for small properties, construction site and motorcade. It easily and flexibly realizes efficient and rapid communication in the control area.
Cost-effective with SFR Feature
Cost-effective with SFR Feature
Functioning as a single frequency repeater, it allocates one timeslot to receive while the other to transmit; and in DMO mode further extends radio coverage. One device serves two purposes.
User Friendly Design
User Friendly Design

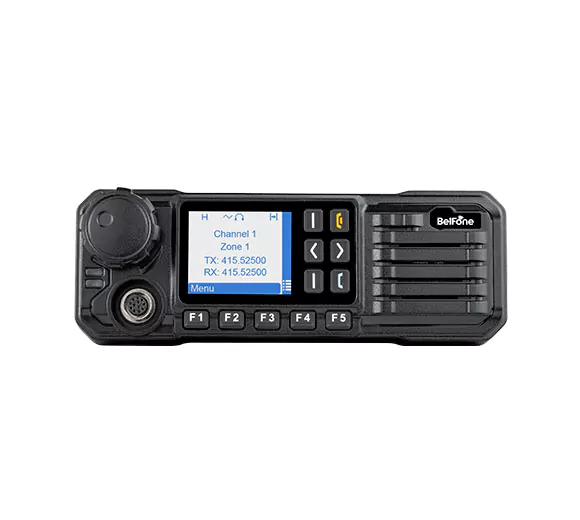

- Bright, Color LCD Display: The high contrast color display is easy to read in all kinds of lighting.
- Power-on Password: Nobody can mess with your radio.
- Status Voice Prompt: This user-friendly function enables the drivers to keep their eyes on the road.

General
Frequency Range
VHF: 136-174MHz; UHF: 350-390MHz/ 400-480MHz/ 450-520MHz
Channel Capacity
160
Zones
50
Channel Spacing
12.5KHz
Working Voltage
DC13.8V (±15%))
Frequency Stability
±1.5ppm
Antenna Impedance
50Ω
Dimension
175(L)* 175(W)* 63(H) mm
Weight
1.51kg
Operating Temperature
-20℃~+70℃
Storage Temperature
-40℃~+80℃
Transmitter
Power Output
VHF/UHF H:30W; VHF/UHF L:10W
4FSK Modulation
12.5KHz (data only): 7K60FXD; 12.5KkHz (data and voice): 7K60FXE
FM Modulation
12.5KHz: 8K50F3E
Modulation Limitation
+/- 2.5KHz @ 12.5KHz
FM Noise
-40dB
Spurious Emission
-36 dBm≤1GHz; -30 dBm≥1GHz
Adjacent Channel Power
≤-60dB
Frequency Response
+1/-3dB
Vocoder
AMBE +2™
Audio Distortion
≤3%
Receiver
Digital Sensitivity
5% BER: 0.25 uV
Analog Sensitivity
0.25 uV (12 dB SINAD)
Intermodulation
60dB
Adjacent Channel Selectivity
60dB
Spurious Response Suppression
70dB
FM Noise
-40dB
Frequency Response
+1/-3 dB
Audio Power
3W
Audio Distortion
≤3% (typical)
Conduction Radiation
-57dBm
GPS Precision
Horizontal Accuracy ≤-10m (with good signal)
TTFF (first location) Cold Boot
<1 minute(with good signal)
TTFF (first location) Hot Boot
<10 seconds (with good signal)
