BF-998
Return
BF-998
BF-998
Analog Mobie Radio
BF-998

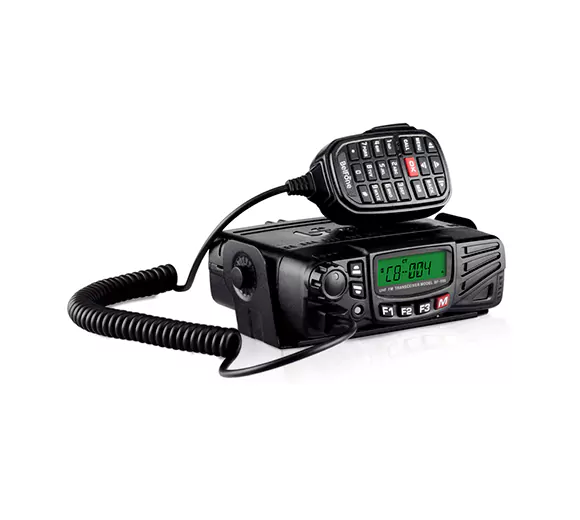

BF-998 is a professional PMR mobile radio dedicated to providing mobile users with safe and reliable communications. The built-in DQT/QT helps to secure communication clarity as well as privacy. BF-998 comes with a comprehensive set of conventional analog features, such as BCL, TOT, Talk-around, Squelch Levels, etc. This is a cost-effectiven economic mobile radio to meet your daily communication needs.
Brochure
Inquiry
Features & Benefits
Specification
Accessories



* Emergency Alarm

BF-998 keeps your safety in mind. Should any emergency rises, press the emergency alarm button and the radio will immediately transmit a signal to your colleagues for help.



* Time-out Timer (TOT)

This function limits the transmitting time for each PTT press and effectively prevents a channel from being unnecessarily occupied by mistake.



* PC Programming

The user can program the radio on the computer via a programming cable.



* Squelch Levels

By suppressing background noises this feature helps to deliver a better audio experience to the user.



* Busy Channel Lockout (BCL)

This prevents the user from transmitting on an already busy channel, and thus increases the user’s work efficiency.



General
Frequency Range
VHF:136-174MHz; UHF:350-390MHz,UHF:400-470MHz
Channels
128
Channel Spacing
25KHz/12.5KHz
Operating Temperature
-20℃~+60℃
Antenna Impedance
50Ω
Working Voltage
13.8V (±15%)
Working Current
TX<8A,RX<1A,Standby<0.4A
Frequency Stability
≤±2.5ppm
Dimensions
158(L)*152(W)*50(H)mm
Weight
1.04kg
Transmitter
Power Output
H:25W M:15W L:5W
Modulated Mode
16K0F3E(width) 8K5F3E(narrow)
Noise and Harmonic
≤-36dBm
FM Noise
≤-40dB
Audio Distortion
≤5%
Adjacent Power
≥65(width)/60dB(narrow)
Modulated limitation
≤5KHz(width)/2.5KHz(narrow)
Receiver
Sensitivity
≤0.2uV(width)/0.25uV(narrow)
Adjacent Channel Selectively
≥60dB(width)/55dB(narrow)
Intermodulation Rejection
≥60dB(width)/55dB(narrow)
Spurious Response
≥60dB(width)/55dB(narrow)
Audio Power Output
2W(inter) 8W(outside)
Audio Distortion
≤5%
