Analog Two-way Radio
BF-350

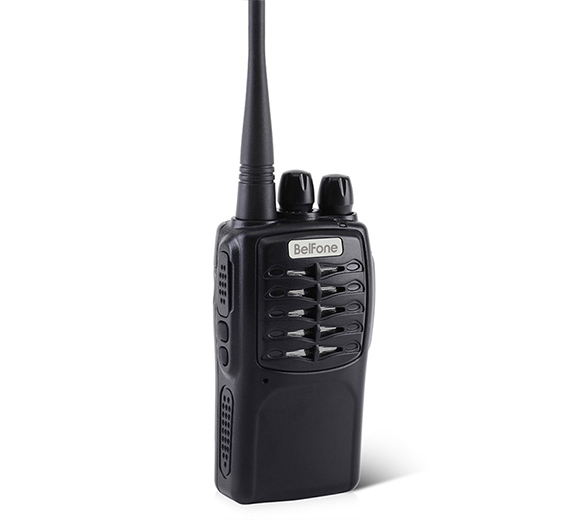

BF-350 is a light and robust two-way radio with excellent performance and stability. Although a low power radio, it comes with a whip antenna to extend talk range. The uniquely designed speaker delivers a loud and crisp audio. BF-350 is a wonderful choice for amateur users and businesses like shops, restaurants, supermarkets, etc.
Brochure
Inquiry
Features & Benefits
Specification
Accessories



* Squelch Levels (0-9)

This gives the user a better audio experience by eliminating unwanted interference.



* Channel Prompt

Switch channels via channel control knob, and the radio will announce the current channel number.



* Busy Channel Lockout (BCL)

When activated, this feature prevents the radio from receiving unauthorized signals or transmitting signals to busy channels. So channels can be kept from unnecessary interference.



* Scan

When this function is activated, the user can listen to radio activities on other channels.



* CTCSS/CDCSS

This also helps to keep out unwanted signals and deliver more channel clarity and efficiency.



General
Frequency Range
VHF:136-174MHz;UHF:350-390/400-470 MHz
Channel Capacity
16
Channel Spacing
25KHz/12.5KHz
Voltage
DC3.7V (±20%)
Frequency Stability
≤±2.5ppm
Antenna Impedance
50Ω
Battery Capacity
2200mAh
Working Temperature
-20℃—+60℃
Dimensions
59(L)*41(W)*103(H) mm
Weight
220g(battery included)
Transmitter
Power Output
≤3W
Modulation
16KΦF3E(wide)/8KΦF3E(narrow)
Noise and Harmonic
≤-36dBm
FM Noise
≤-40 dB
Rated Audio Distortion
0.05
Adjacent Power
≥65 dB(wide)/55 dB(narrow)
Modulation Limitation
≤5KHz(wide) /2.5KHz(narrow)
Receiver
Sensitivity
≤0.16µv(wide)/0.2µv(narrow)
Adjacent Selectivity
≥60 dB(wide)/50 dB(narrow)
Intermodulation Rejection Ratio
≥60 dB(wide)/50 dB(narrow)
Spurious Suppression
≥60 dB(wide)/50 dB(narrow)
Rated Audio Output Power
0.5W
Rated Audio Distortion
0.05
